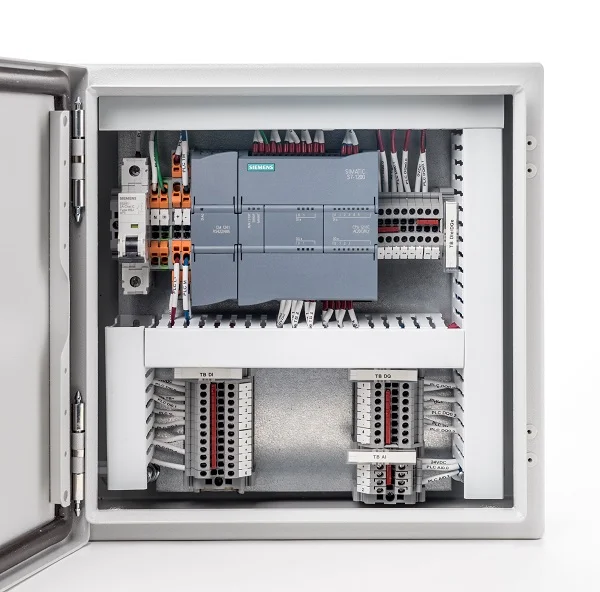

System Housed in a 14" x 12" x 6" Nema4 Powder Coated Carbon Steel Enclosure

Both 24VDC and 120/240VAC Incoming Power Options

Base PLC: Siemens CPU S7-1211C, COMPACT CPU with included on board I/O:

 2 Analog Inputs

6 24VDC Inputs

4 Relay Outputs (Rated at 2A each)

HMI: None

Terminal Blocks included for easy field wiring with optional fusing for inputs and outputs

Circuit Breaker Protection for Incoming Power

Complete Assembly is UL508A Listed

Full CAD drawings for wiring and layout schematics

1 Year manufacture warranty
